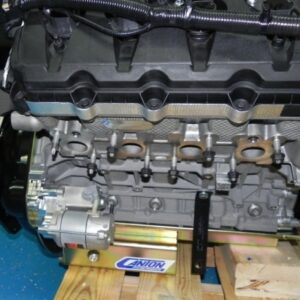

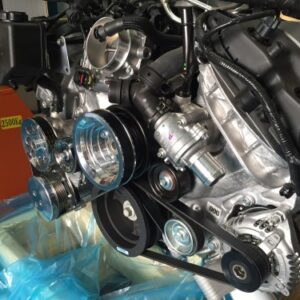

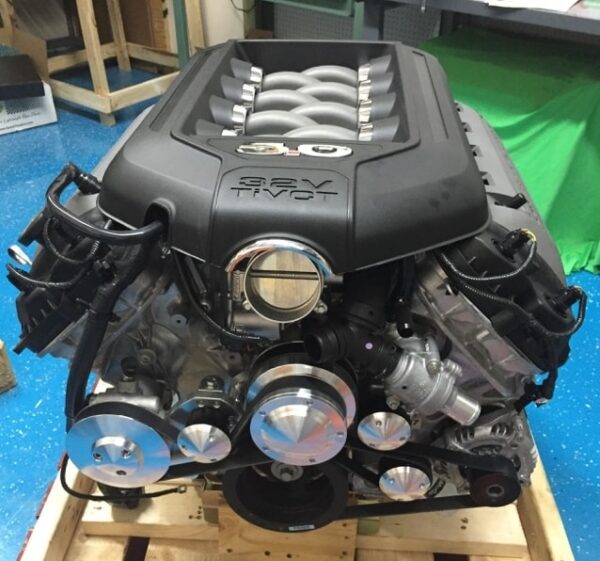

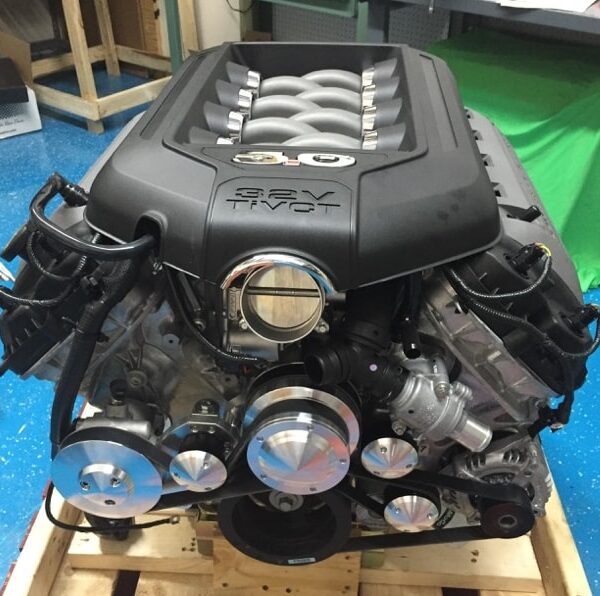

460HP – 5.0 Coyote Ford Crate Engine

460 HP / 5.0 Coyote Ford Crate Engine w/ 10 Speed Auto Trans Combo For 1966-77 Bronco 4 x 4

This is the Complete GEN 3 Ford Coyote Engine and Automatic Transmission Package. Ideal for an early 66-77 Bronco 4×4. Plug n Play. Includes: Pulleys with Alternator, Wiring harness, Plastic Engine Cover, Computer, Wiring Harness, Fuel Rails and Starter.

We are offering 460 HP / 5.0 Coyote Ford Crate Engine w/ 10 Speed Auto Transmission Combo at a very competitive price ,460HP – 5.0 Coyote Ford Crate Engine please check the Product specifications, and if you have any questions feel free to contact us.  More complete than just a standard Crate engine.  No need to splice wires and reconfigure harnesses from a junkyard engine, or a brand new powerplant. **In Stock

• 5.0L (302 cubic inches)
• 12.0:1 compression ratio (nominal)
• Hyperuetectic  pistons with Graphal® low friction coating Piston-cooling jets, optimized oil drain back, and windage control improve high-rpm performance
• Manley® H-beam connecting rods with ARP® 2000 bolts
• Clevite connecting rod bearings
• Lightweight aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength
• Large rear sump Retrofit oil pan with 10qt capacity features optimized oil drain back and windage tray to control oil and improve high-rpm performance
• Tuned composite Mustang GT intake manifold with production drive by wire 80 mm throttle body
• Four-valve-per-cylinder aluminum heads with roller-finger followers reduce friction with Boss Valve Springs
• Ford Racing engine cover kit
• The Ford Racing “Coyote” Engine Control Pack includes a PCM with Ford Racing calibration, an Electronic Throttle Control accelerator pedal, a unique downsized power distribution module, an Airbox with an inlet tube, an MAF sensor with bolts, and EGO sensors.
• Front Timing Cover
• Includes colder heat range zero (0) spark plugs,
• Includes Ford Racing oil filter
• Automatic Flexplate
• Vehicle harness and PCM  included, designed for street rod/project car installation.
• Remote Mount Filter Adapter  available for applications requiring oil filter relocation
• Engine mount bosses and bell housing mount patterns common to 4.6L modular engines.
• Serpentine Kit with Brackets for A/C and P/S available for Additional $

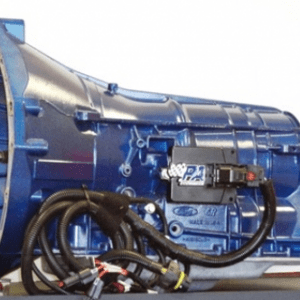

• Complete 4 x 4 10R80W Automatic Transmission. with Controller. Includes Torque Converter, Spacer Plate & Diptube.
• Advanced Adapter for Dana 20 or Atlas Transfer Case
• High Torque Starter
