 BRONCO 4×4 COMPLETE COYOTE SWAP PACKAGE

 Engine & Transmission Pkg Including Installation Kit  for Classic Broncos (1966–77)

SKU: TD-BC-4X4-COMPLETE
Availability: Built to order – Estimated lead time: 3-4 weeks

Category:

Description

Description

Bring your classic Bronco into the modern era with this Complete 4×4 Coyote Swap Package — One of our best-selling all inclusive Bronco Coyote Powerplant, Transmission and installation Kit.

This gives you most of everything needed for the installation of the legendary 5.0L Coyote V8 and automatic transmission into your 1966–77 Bronco.   No splicing old wiring.  Bolt-in performance and OEM-level drivability.

 PACKAGE INCLUDES:

ENGINE & TRANSMISSION

  • Brand-new 5.0L Coyote Engine (Choose Gen 3 or Gen 4)
  • 6R80 4×4 Automatic Transmission (10 speed available)
  • Torque Converter, Flexplate, and Spacer Plate
  • Transmission Dipstick & Tube
  • Transmission Cooler, Fan and thermostat
  • Engine Oil Filter & Housing Assembly. ( Oil cooler relocation Kit)
  • Engine Wiring Harness + PCM / ECU Control Pack
  • Pre-calibrated tune and drive-by-wire throttle pedal
  • OBD-II diagnostic port and integrated fuse box
  • Serpentine Pulley Kit featuring:
    • 140-Amp Alternator
    • Sanden A/C Compressor with AC Line adapter kit
    • Power Steering Pump (Driver-Side Mount)
  • Billet Brackets & Relocated Tensioner for Bronco clearance

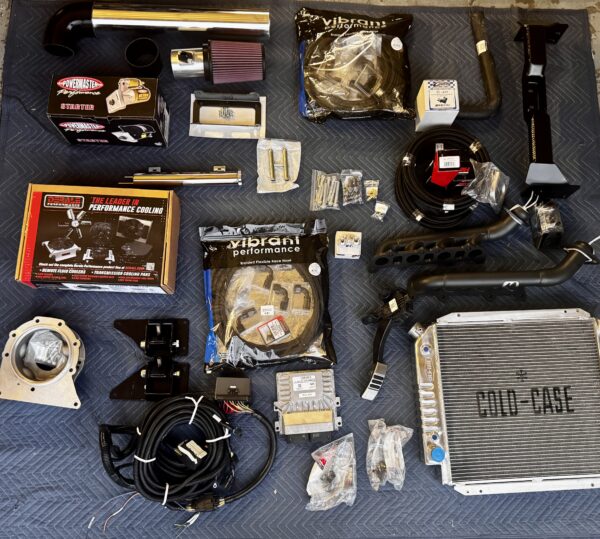

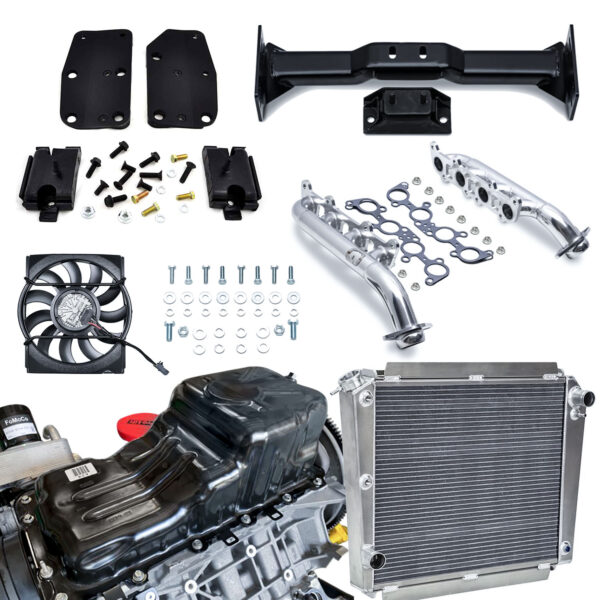

Installation Kit Components

  • Bronco Engine Mount Kit – precision-fit brackets for 1966–77 frames
  • ECU Bracket
  • Crossmember – supports 6R80 / 10R80 trans options
  • Transfer Case Adapter Kit – mates transmission to Dana 20 transfer case
  • Low-Profile Oil Pan Kit with gaskets & hardware
  • Mid-Length Headers with gaskets & bolts for Bronco clearance
  • Heater Hose Kit, Oil Pressure Adapter, Water Neck Bleeder
  • Cut to Fit Cold Air Kit with KN Filter and Mass Air Meter
  • 3-Row Aluminum Radiator with Shroud & Electric Fan
  • Plug-and-play Fan Wiring Harness
  • Upper Radiator Hose Aluminum Adapter
  • Integrated Thermostat & Sensor Ports

Fuel System

  • Braided Fuel Line Kit 8AN with fittings, feed and return with Regulator

⚙️ TECHNICAL SPECIFICATIONS

Specification Detail
Engine 5.0L Coyote V8 – Gen 3 or Gen 4
Transmission 6R80 4×4 Automatic –  10 speed available.
Power Output ~460 / 480 HP / ~420 lb-ft torque
Compatibility 1966–77 Ford Bronco / F-Series 4×4
Transfer Case Dana 20 or aftermarket equivalent
Installation bolt-in with included mounts & adapters
Electronics Ford Performance PCM & Plug-and-Play Harness
Warranty 12-Month Limited Warranty



🕒 LEAD TIME

Typical build: 4 weeks
(Custom configurations may vary depending on options and engine generation.)

💪 WHY CHOOSE THIS PACKAGE

✅ One-Stop Solution — Most hardware, electronics and parts supplied
✅ Engineered Fitment — Designed for classic Bronco 4×4 frames
✅ Modern Reliability — Factory electronics & diagnostics
✅  No major fabrication required

📦 WHAT YOU’LL RECEIVE

  • Complete Coyote Power Module (Engine + 6R80 4×4 Trans + PCM + Harness)
  • Full 4×4 Conversion Kit (Mounts, Adapters, Radiator, Headers, etc.)
  • Accessory & Cooling Systems
  • Installation Documentation

🏁 Ideal For

  • Restorations with original or new Chassis
  • Custom Off-Road Builds
  • Classic Bronco Restomods with new Modern technology

💲 PRICING

(This kit can be customized upon request)

***Suggest a minimum of a  2-3 inch Body and suspension lift for better fitment
