FFR XTF Truck SC Coyote Engine 2015-2017 – 6 Speed Automatic Transmission Package

0 out of 5


Optional installation Items Select Below


TD Motion Offers

FFR XF F150 SC 5.0 Coyote Engine / 6 Speed Automatic Transmission Package

Are you thinking about upgrading your 2015-2017 F150 engine to a Supercharged setup? This complete Ford Coyote SC Powerplant Module Kit with a 5.0 Coyote Engine, 6R80 6-Speed Automatic Transmission, and Control Pack is exactly what you’ll need. This Coyote Power Module Kit takes away all the guesswork of what will be needed for your Coyote engine swap by pairing up all the right parts.  Contact us for more Details.

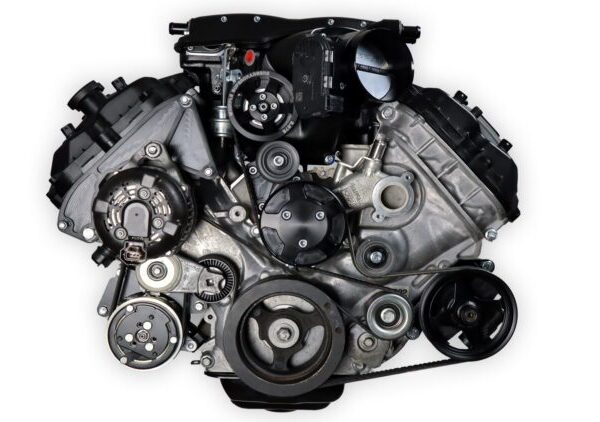

  • Gen 2 High-performance 5.0-liter, four-valve Ti-VCT Coyote engine
  • 400 horsepower @ 6500 rpm
  • 400 ft.-lb.+ of torque @ 4250 rpm
  • Displacement 302 cu. in.
  • 3.63 bore x 3.65-in stroke
  • Aluminum block
  • Forged steel crankshaft
  • Forged steel connecting rods
  • Hypereutectic aluminum pistons
  • Aluminum cylinder heads, DOHC, four valves per cylinder, Variable intake and exhaust camshaft timing
  • 8qt capacity Retrofit  oil pan
  • 10.5:1 Compression ratio
  • Tuned composite intake manifold provides efficient air delivery and weight savings
  • Whipple Gen 5 Supercharger and Tuner
  • 80 mm single bore “drive by wire” throttlebody
  • Includes manual transmission engine harness and flywheel
  • Vehicle harness and PCM  included
  • Ford Racing’s NEW wiring, PCM and installation kit designed for street rod/project car installation.
  • 5.0L Mustang engine cover kit
  • Ford Racing Oil Filter
  • Accessory Pulleys with Alternator only. available for additional charge (Power Steering and AC Compressor)
  • Hardware, Fittings
  • 4 x 4 6R80W Automatic 6 Speed Transmission with Torque Converter +  Control Pack
  •  Includes Torque Converter, Spacer Plate & Diptube .

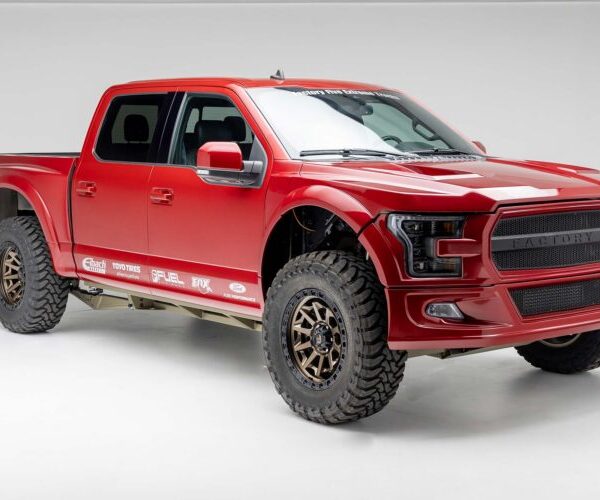

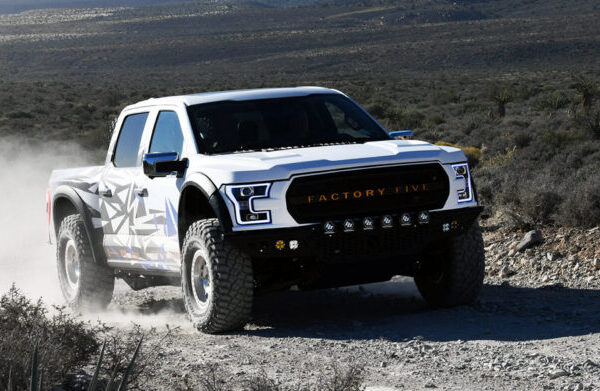

Intended for 2015-2017 F150  FFR XTF Conversions



One Stop Shopping with Engine and Transmission.



Ford 302, 347 stroker, 427w stroker, Coyote and Godzilla Crate Engines. Classic Mustangs and Muscle Cars, Cobra Replicas, Hot Rods, Trucks and broncos. Daily driven, Street Performance and Street / Strip Engines Customized to your vehicle. Top Brand Parts & machining, 30+ years in business available Ready to Run out of the box. Visit Now;  www.mustangengines.com

Additional information

Weight 500 lbs
