5.0 Coyote Low Profile Rear Sump Oil Pan Kit


Coyote Rear Sump Oil Pan Kit. Purchase together to save time and $$

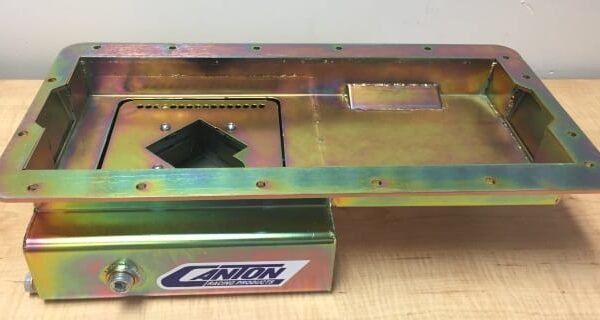

Ford 5.0 Coyote oil pan is designed for early Ford chasis and others that required a low profile Rear sump oil pan. This Oil pan Kit Includes the Rear Sump Oil Pan and Matching Pickup Screen .  Has extra capacity and is used in road race applications where ground clearance is important .It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle.  ***Combine and Save!!


  • Designed for 5.0 Coyote Blocks GEN 1 and Gen 2
  • Pickup for the 5.0 Coyote Rear sump pan 15-737
  • Will accept the factory Dipstick and tube –  Dipstick may require trimming.
  • Oil Pan has Diamond Shape Road Race Baffle Assembly With Four Trap Doors. Removable Windage/Anti-Slosh Baffle
  • 1/2″ NPT Temperature Bung
  • 20mm Bung for low Oil Warning Sender
  • Made In USA.  Tig Welded
