Engine Mount Kit; Godzilla 7.3, Raptor 6.2



Product Details
Brand: Welder Series
MPN: 217300
Country/Region of Manufacture: Canada
Thickness: 1/4″ main plate

This Ford “Godzilla” 7.3L motor mount kit can be used in frames of varying widths, from a narrow T-bucket to F100 pickups. The plate design is easy to assemble (if you choose the ready to weld kit), strong, and looks great. Gussets add extra support. Urethane bushings absorb vibrations. Zinc plated metric bolts and lock washers are included.

<p “=””>This kit has also been used on the 6.2 Raptor engine.The 3/16″ frame plates will need to be trimmed to fit your frame after you establish the engine location. Filler plates to create a third side on the frame plates are included.

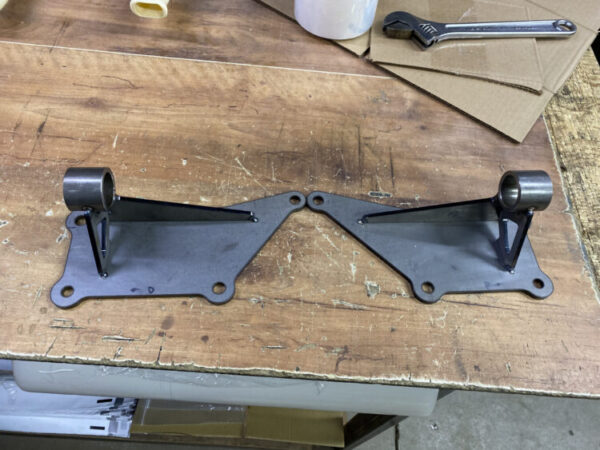

1/4″ main plate and 3/16″ gussets. Uses our large 1-3/4″ wide urethane bushings. Ready to weld kit comes completely unwelded. Welded kit is artfully tig welded as shown in main picture.

Available fully tig welded or ready to weld.

Kits include:
4x #20494 trim to fit frame plates
2x #27804 frame plate fillers
Driver & Passenger 1/4″ engine plates

Urethane bushings, outer tubes and inner sleeves
3/16″ gussets and top plates
All required zinc plated grade 5 hardware
