Description

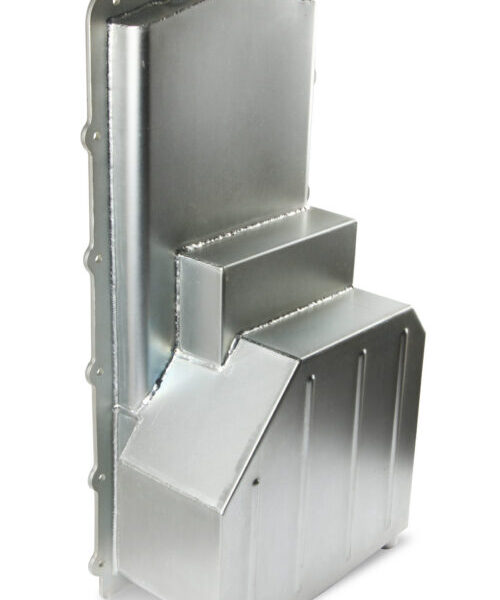

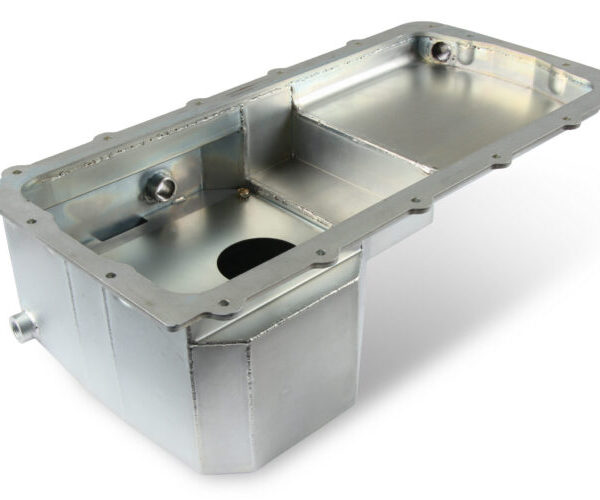

FORD COYOTE Fox Body Swap Oil Pan

1979-2004 Mustang 5.0L Coyote engine swap. Fits Gen 1 and Gen 2 Coyote engines 2011-2017 model years

• Low-profile front pan geometry permits Coyote engine installation on stock 1984-2004 Mustang K-members (1984-1995 K-members require the use of specific proprietary design Hooker Blackheart engine mounting brackets).
• Also fits specific aftermarket K-members from AJE, Team Z, Maximum Motorsports, and UPR.
• Maintains oil capacity of stock Mustang Coyote oil pan (8 qt. nominal) to ensure adequate oil supply in all street performance and factory-stock type racing applications.
• Installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics.
• The design includes a bung on the left side of the sump for the stock Mustang Coyote oil level sensor.

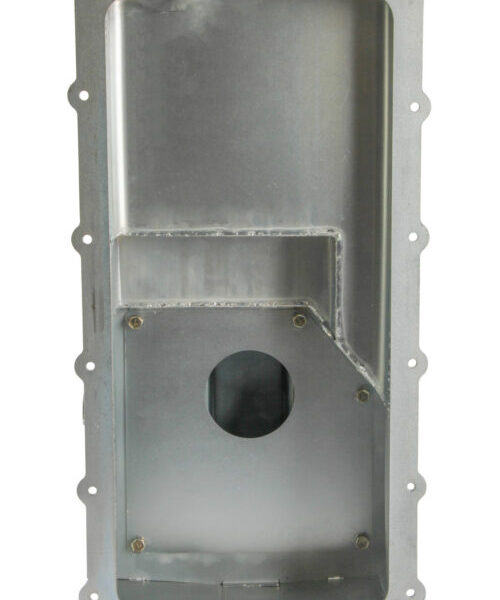

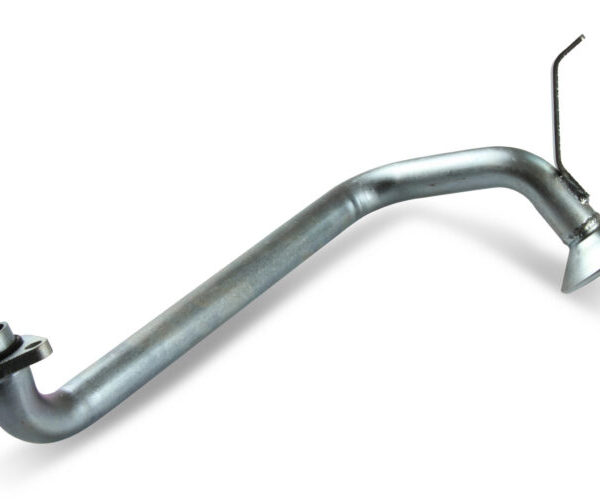

• Proprietary design pick-up tube/O-ring and lower sump baffle plate are included.

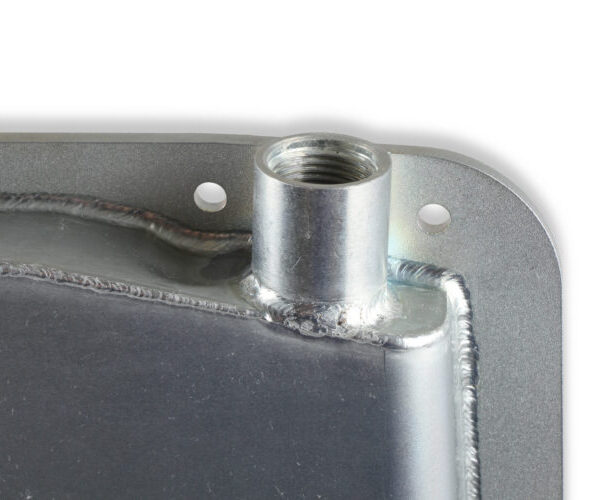

• Equipped with -10 O-ring boss (ORB) port bung at front of pan for easy connection of turbo drain plumbing (fitting and/or plug is user-supplied as needed).
• 100% quality hand-welded construction for strength, longevity and good looks.
• Zinc plated finish provides corrosion resistance on the inside and outside of the pan.
• Fitment compatible with Hooker Blackheart and other brand Coyote swap headers for 1979-2004 Mustangs.
• Oil pan fits 2011-2017 Coyote engines

Application: Coyote
Brand: Holley
Emission Code 5
Finish:  Zinc
Material:  Steel Oil Pan
Capacity: 8.0 Quarts
Oil Pan Type:  Fabricated Oil Return
Size: 10 AN ORB
Product Type Oil Pan Kit
Sump Location: Rear Turbo
Oil Drain back: Yes
Warranty : Limited 90 Day
Windage Tray Included
Part Number TD-302-50
